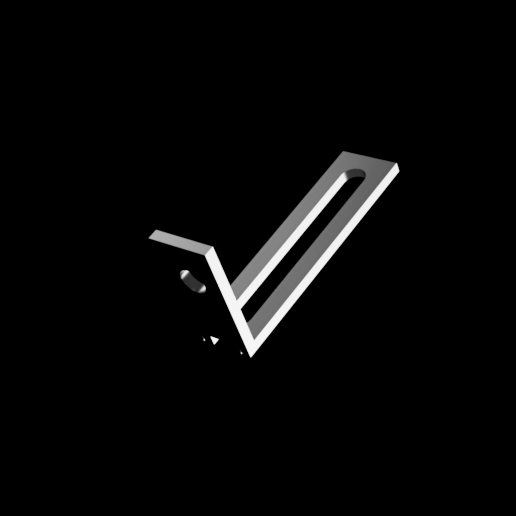

Sliding Stop - FREE DXF FILES
Share this Product
It's time to take your shop to the next level with these custom fixtures. Each one is designed to work with our Ultimate Maker Table and all other tooling/fixtures, so you can make almost anything efficiently in your shop. We have done the work in CAD so you can use this file to make as many fixtures as you need for the rest of your career. Simply download the file and send it to your plasma or local laser.
Files are designed for a laser with very little tolerance if cut on a plasma table, holes will be undersized approximately 0.06". Watch this video for expected results using different plasma settings.
6" x 3" x 1/4" Thick (Designed to be cut from 1/4" plate)
5/8" hole and slot
These are the cut files only, no actual parts will be shipped. Once you checkout you will be emailed a link to download this file one time. Please put the file in a safe place so you can use it for years to come.
Can you cut my logo/design out of metal?
Plasma has a hard time with small and detailed designs. The only way to tell if your logo or design is possible is to send me an artwork file and the dimensions. I need both pieces of info to tell you what is possible.
I currently offer a RAW STEEL finish as standard on all signs. Left untreated the sign will rust and develop a natural patina completely unique to your environment. Due to the nature of raw steel, each piece will vary in look, giving you a unique piece.
The INDOOR FLAT CLEAR coat is the best option if you like the look of the raw steel. It is an oil based clear coat that will hold up well inside and is easy to clean. This finish leaves the steel a few shades darker, sometimes even black.
A UV protected SILVER, GLOSS CLEAR or FLAT BLACK powder coat will protect the steel in the toughest conditions including outside in wet and salty environments. Powder coat is a thick industrial coating that is VOC free and holds up for many years.
Custom and Personalized Orders
If you like a design but want something tweaked, changed, massaged or added, let me know and I can work up a truly unique piece for you. My custom work is priced by the size and finish selected. Contact me and I will set up a Custom Listing just for you!
See the Policies page for more info.
Why choose Maker Table?
Maker Table is about more than metal. I want to help you create something special for your unique space using your inspiration, ideas, and ideology through art. Each piece is balanced between your wants, my technology, and an overarching desire to deliver on an expectation. I'm a real person that cares about everything that I MAKE. Where are you going to get that in the 21st century?
*FREE SHIPPING on items under 3ft
The free shipping discount applies to orders that are 3 feet and under. Free shipping to lower 48 contiguous United States only. Excludes Alaska, Hawaii, and all other US territories and foreign countries.
haven't cut and built it yet. I opened it in my nesting software and it didn't have any CAD layers to nest. which i guess means it hasn't been finalized yet and it isn't ready to "Drop and Cut".
Files were perfect. Nothing needed. No modification needed. Would highly recommend.
