We all end up with a mess on the bench when we're in the middle of a project.  Grinders, drills, air tools, beaters and welding hoods are all essentials to the job. So we made one central location to hold them all, even the battery charger!  Our Tool Caddy is designed with generous relief notches to allow you to bend this on the edge of your bench, no brake or special tooling is required.  Just download, cut, bend and weld in a few spots to make as many of these as you like. This file is designed to be cut out of 12 ga but you can use 16 ga - 10 ga and still make it work.     Overall Dimensions 18.75" W x 9.25" T x 9.75" D  (Designed to be cut from 12 ga plate) Relief notches for brake free bends   These are the cut files only, no actual parts will be shipped.  Once you checkout you will be emailed a link to download this file one time.  Please put the file in a safe place so you can use it for years to come.

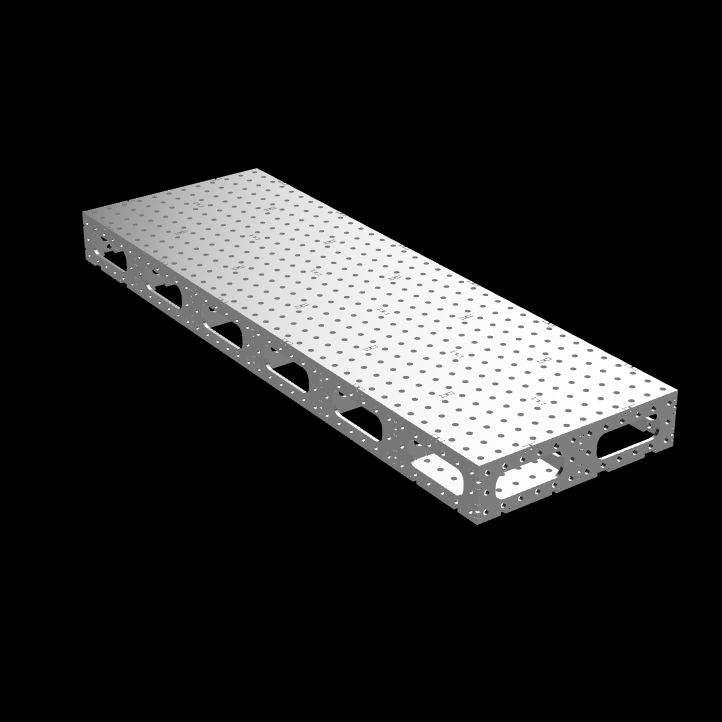

Take on the big shops with these Plasma Maker Table DXF files.  We did the heavy lifting in CAD so you can cut a precision welding surface using any CNC cutting operation plasma, laser or waterjet. See video below for plasma cutting options What's the difference between the Plasma Maker Table and the Ultimate Maker Table? It really comes down to one thing, tolerance.  The PLASMA DXF files have a generous tolerance of 0.03" (1/33") built into each connection to compensate for the variable kerf in plasma, laser and waterjet cutting operations.  This is why the files work on any well maintained CNC machine.  What does that mean in the real world? The Plasma Maker Table DXF files were made to help ANYONE in the world make a precision welding surface at the lowest possible cost regardless of budget or available equipment. So I had to make some compromises to make that possible.  The Plasma Maker Table DXF files fit up looser, take more skill to create square corners and can have some crowning on the short axis. If you are an experienced fabricator you can make this table a precision instrument in your shop by taking your time and using your skills.  If you are on a tight budget and have extra time the DXF files are the right move.  If you NEED a precision surface to build a business get the Ultimate Maker Table Parts Kit. **2/4/2020 - Every table I use in my shop was cut with these Plasma DXF Files not the new Ultimate Maker Table design.  You can achieve perfect corners and flatness to 0.03" over 12 feet if you take your time. REQUIRES 2x (5'x10') SHEETS TO NEST PARTS Overall Dimensions 48" x 72" x 6" 5/8" holes spaced 2" on center NO SPECIAL TOOLING REQUIRED! Quick Clamp Slots on edges for easy clamping with your existing R-11 clamps.   These are the cut files only, no actual parts will be shipped.  I will email you the DXF cut files once your payment clears (1-2 days).  It is up to you to manage the cutting process with your local supplier and set the specifications for an acceptable cut tolerance.

Take on the big shops with these Plasma Maker Table DXF files.  We did the heavy lifting in CAD so you can cut a precision welding surface using any CNC cutting operation plasma, laser or waterjet. See video below for plasma cutting options What's the difference between the Plasma Maker Table and the Ultimate Maker Table? It really comes down to one thing, tolerance.  The PLASMA DXF files have a generous tolerance of 0.03" (1/33") built into each connection to compensate for the variable kerf in plasma, laser and waterjet cutting operations.  This is why the files work on any well maintained CNC machine.  What does that mean in the real world? The Plasma Maker Table DXF files were made to help ANYONE in the world make a precision welding surface at the lowest possible cost regardless of budget or available equipment. So I had to make some compromises to make that possible.  The Plasma Maker Table DXF files fit up looser, take more skill to create square corners and can have some crowning on the short axis. If you are an experienced fabricator you can make this table a precision instrument in your shop by taking your time and using your skills.  If you are on a tight budget and have extra time the DXF files are the right move.  If you NEED a precision surface to build a business get the Ultimate Maker Table Parts Kit. **2/4/2020 - Every table I use in my shop was cut with these Plasma DXF Files not the new Ultimate Maker Table design.  You can achieve perfect corners and flatness to 0.03" over 12 feet if you take your time. REQUIRES 1x (5'x10') SHEET TO NEST PARTS Overall Dimensions 1.5M x 1M x 150mm 5/8" holes spaced 50mm on center will fit 16 mm or 5/8" clamps and fixtures. NO SPECIAL TOOLING REQUIRED! Quick Clamp Slots on edges for easy clamping with your existing R-11 clamps.   These are the cut files only, no actual parts will be shipped.  An instant download link will be emailed to you after checkout.  It is up to you to manage the cutting process with your local supplier and set the specifications for an acceptable cut tolerance.

Take on the big shops with these Plasma Maker Table DXF files.  We did the heavy lifting in CAD so you can cut a precision welding surface using any CNC cutting operation plasma, laser or waterjet. See video below for plasma cutting options What's the difference between the Plasma Maker Table and the Ultimate Maker Table? It really comes down to one thing, tolerance.  The PLASMA DXF files have a generous tolerance of 0.03" (1/33") built into each connection to compensate for the variable kerf in plasma, laser and waterjet cutting operations.  This is why the files work on any well maintained CNC machine.  What does that mean in the real world? The Plasma Maker Table DXF files were made to help ANYONE in the world make a precision welding surface at the lowest possible cost regardless of budget or available equipment. So I had to make some compromises to make that possible.  The Plasma Maker Table DXF files fit up looser, take more skill to create square corners and can have some crowning on the short axis. If you are an experienced fabricator you can make this table a precision instrument in your shop by taking your time and using your skills.  If you are on a tight budget and have extra time the DXF files are the right move.  If you NEED a precision surface to build a business get the Ultimate Maker Table Parts Kit. **2/4/2020 - Every table I use in my shop was cut with these Plasma DXF Files not the new Ultimate Maker Table design.  You can achieve perfect corners and flatness to 0.03" over 12 feet if you take your time. REQUIRES 1x (4'x8') SHEET TO NEST PARTS Overall Dimensions 24" x 48" x 6" 5/8" holes spaced 2" on center will fit all 5/8" and 16 mm tooling NO SPECIAL TOOLING REQUIRED! Quick Clamp Slots on edges for easy clamping with your existing R-11 clamps.   These are the cut files only, no actual parts will be shipped.  I will email you the DXF cut files once your payment clears (1-2 days).  It is up to you to manage the cutting process with your local supplier and set the specifications for an acceptable cut tolerance.

Take on the big shops with these Plasma Maker Table DXF files.  We did the heavy lifting in CAD so you can cut a precision welding surface using any CNC cutting operation plasma, laser or waterjet. See video below for plasma cutting options What's the difference between the Plasma Maker Table and the Ultimate Maker Table? It really comes down to one thing, tolerance.  The PLASMA DXF files have a generous tolerance of 0.03" (1/33") built into each connection to compensate for the variable kerf in plasma, laser and waterjet cutting operations.  This is why the files work on any well maintained CNC machine.  What does that mean in the real world? The Plasma Maker Table DXF files were made to help ANYONE in the world make a precision welding surface at the lowest possible cost regardless of budget or available equipment. So I had to make some compromises to make that possible.  The Plasma Maker Table DXF files fit up looser, take more skill to create square corners and can have some crowning on the short axis. If you are an experienced fabricator you can make this table a precision instrument in your shop by taking your time and using your skills.  If you are on a tight budget and have extra time the DXF files are the right move.  If you NEED a precision surface to build a business get the Ultimate Maker Table Parts Kit. **2/4/2020 - Every table I use in my shop was cut with these Plasma DXF Files not the new Ultimate Maker Table design.  You can achieve perfect corners and flatness to 0.03" over 12 feet if you take your time.   REQUIRES 2x (4'x8') SHEETS TO NEST PARTS   Overall Dimensions 48" x 48" x 6" 5/8" holes spaced 2" on center NO SPECIAL TOOLING REQUIRED! Quick Clamp Slots on edges for easy clamping with your existing R-11 clamps.   These are the cut files only, no actual parts will be shipped.  I will email you the DXF cut files once your payment clears (1-2 days).  It is up to you to manage the cutting process with your local supplier and set the specifications for an acceptable cut tolerance.

Take on the big shops with these Plasma Maker Table DXF files.  We did the heavy lifting in CAD so you can cut a precision welding surface using any CNC cutting operation plasma, laser or waterjet. See video below for plasma cutting options What's the difference between the Plasma Maker Table and the Ultimate Maker Table? It really comes down to one thing, tolerance.  The PLASMA DXF files have a generous tolerance of 0.03" (1/33") built into each connection to compensate for the variable kerf in plasma, laser and waterjet cutting operations.  This is why the files work on any well maintained CNC machine.  What does that mean in the real world? The Plasma Maker Table DXF files were made to help ANYONE in the world make a precision welding surface at the lowest possible cost regardless of budget or available equipment. So I had to make some compromises to make that possible.  The Plasma Maker Table DXF files fit up looser, take more skill to create square corners and can have some crowning on the short axis. If you are an experienced fabricator you can make this table a precision instrument in your shop by taking your time and using your skills.  If you are on a tight budget and have extra time the DXF files are the right move.  If you NEED a precision surface to build a business get the Ultimate Maker Table Parts Kit. **2/4/2020 - Every table I use in my shop was cut with these Plasma DXF Files not the new Ultimate Maker Table design.  You can achieve perfect corners and flatness to 0.03" over 12 feet if you take your time. REQUIRES 1x (4'x8') SHEET TO NEST PARTS   Overall Dimensions 24" x 36" x 6" 5/8" holes spaced 2" on center will fit all 5/8" and 16 mm tooling NO SPECIAL TOOLING REQUIRED! Quick Clamp Slots on edges for easy clamping with your existing R-11 clamps.   These are the cut files only, no actual parts will be shipped.  I will email you the DXF cut files once your payment clears (1-2 days).  It is up to you to manage the cutting process with your local supplier and set the specifications for an acceptable cut tolerance.

Take on the big shops with these Universal Maker Table DXF files.  We did the heavy lifting in CAD so you can cut a precision welding surface using any CNC cutting operation plasma, laser or waterjet. See video below for plasma cutting options What's the difference between the Universal Maker Table and the Ultimate Maker Table? It really comes down to one thing, tolerance.  The UNIVERSAL DXF files have a tolerance of 0.03" (1/33") built into each connection to compensate for the variable kerf in plasma, laser and waterjet cutting operations.  This is why the files work on any well maintained CNC machine.  On the other hand, the Ultimate Maker Table Parts Kit is designed with 0.005" (1/200") tolerance so they can only be cut on a high precision laser and only available as parts directly from us so we can control the quality. What does that mean in the real world? The Universal Maker Table DXF files were made to help ANYONE in the world make a precision welding surface at the lowest possible cost regardless of budget or available equipment. So I had to make some compromises to make that possible.  The Universal DXF files fit up looser, take more skill to create square corners and can have some crowning on the short axis. If you are an experienced fabricator you can make this table a precision instrument in your shop by taking your time and using your skills.  If you are on a tight budget and have extra time the DXF files are the right move.  If you NEED a precision surface to build a business get the Ultimate Maker Table Parts Kit. **2/4/2020 - Every table I use in my shop was cut with these Universal DXF Files not the new Ultimate Maker Table design.  You can achieve perfect corners and flatness to 0.03" over 12 feet if you take your time. REQUIRES 2x (5'x10') SHEETS TO NEST PARTS   Overall Dimensions 60" x 60" x 6" 5/8" holes spaced 2" on center NO SPECIAL TOOLING REQUIRED! Quick Clamp Slots on edges for easy clamping with your existing R-11 clamps.   These are the cut files only, no actual parts will be shipped.  I will email you the DXF cut files once your payment clears (1-2 days).  It is up to you to manage the cutting process with your local supplier and set the specifications for an acceptable cut tolerance.

  Make your own Anvil using mild steel plates!  Cut these out of any thickness plate to change the overall width of your anvil.   Overall Height = 6.5" Overall Length = 16" Overall Width = Plate Thickness X 9 These are the cut files only, no actual parts will be shipped.  Once you checkout you will be emailed a link to download this file one time.  Please put the file in a safe place so you can use it for years to come.
